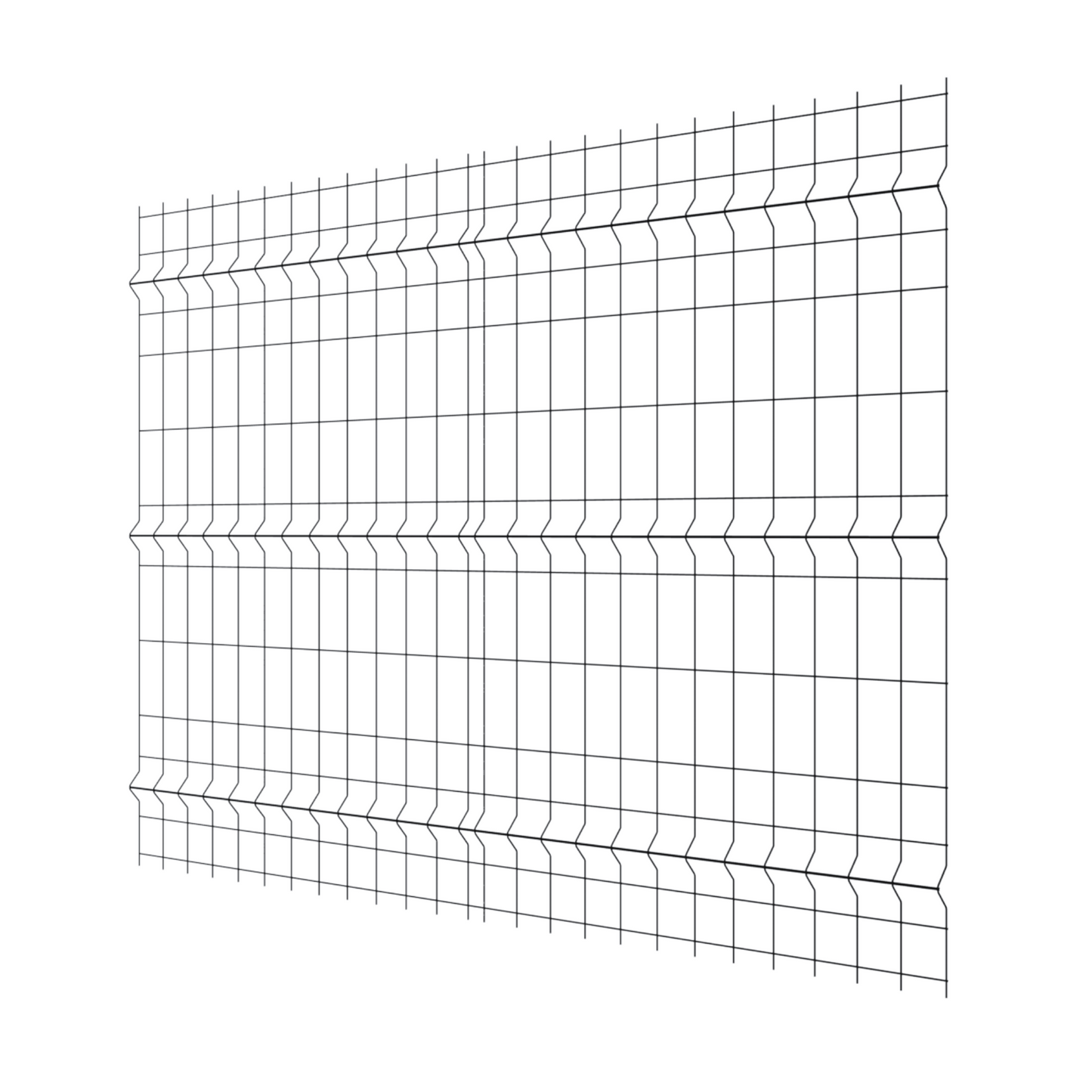

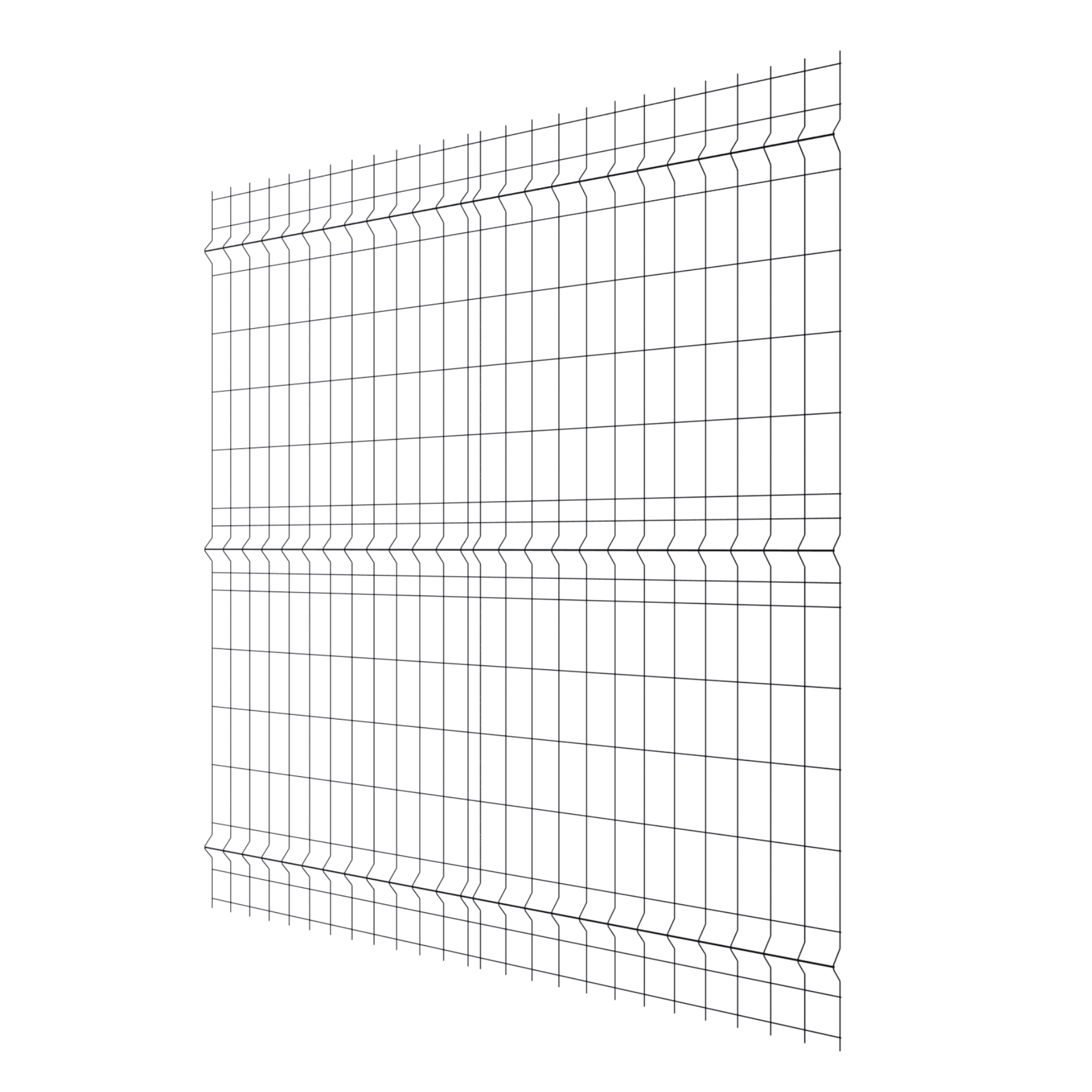

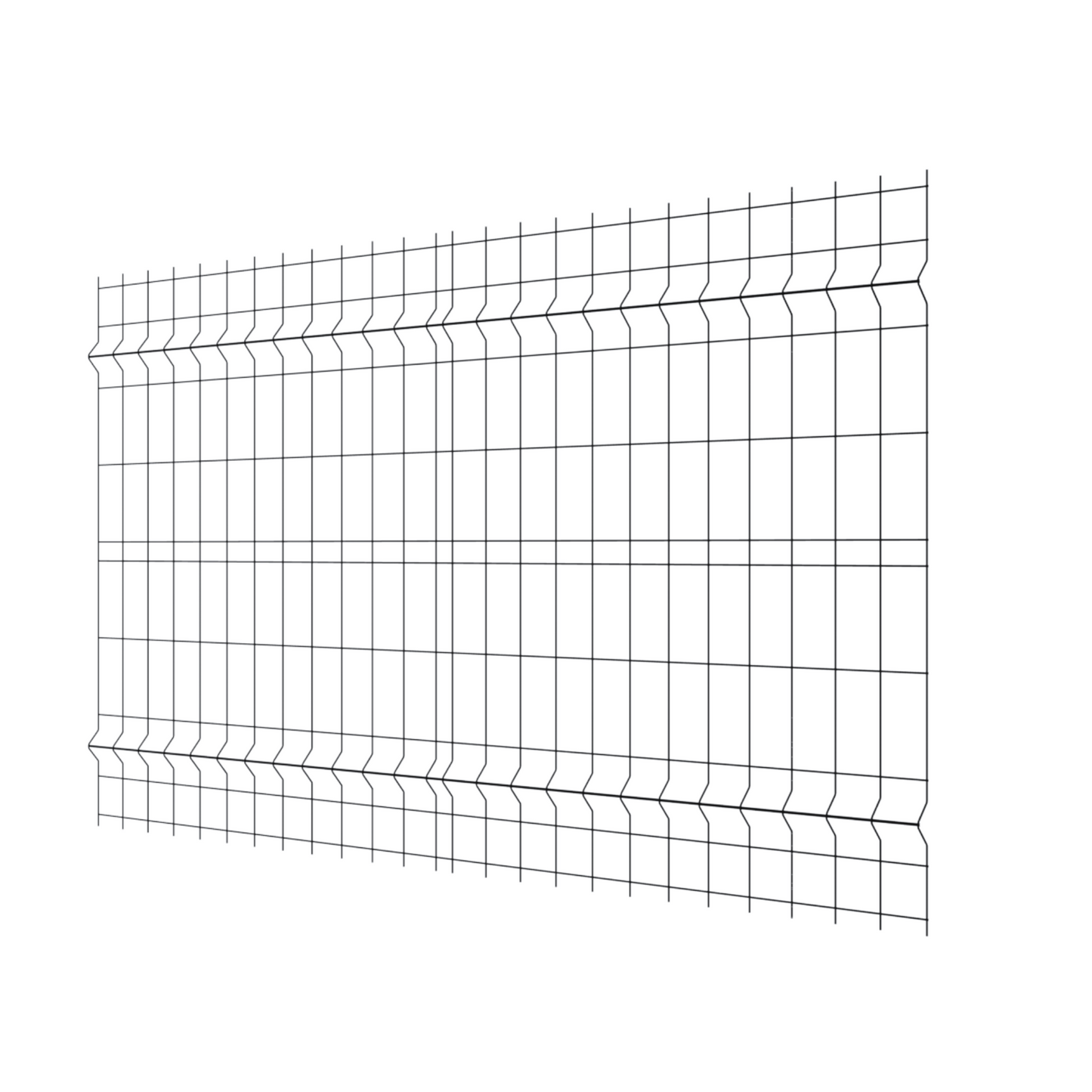

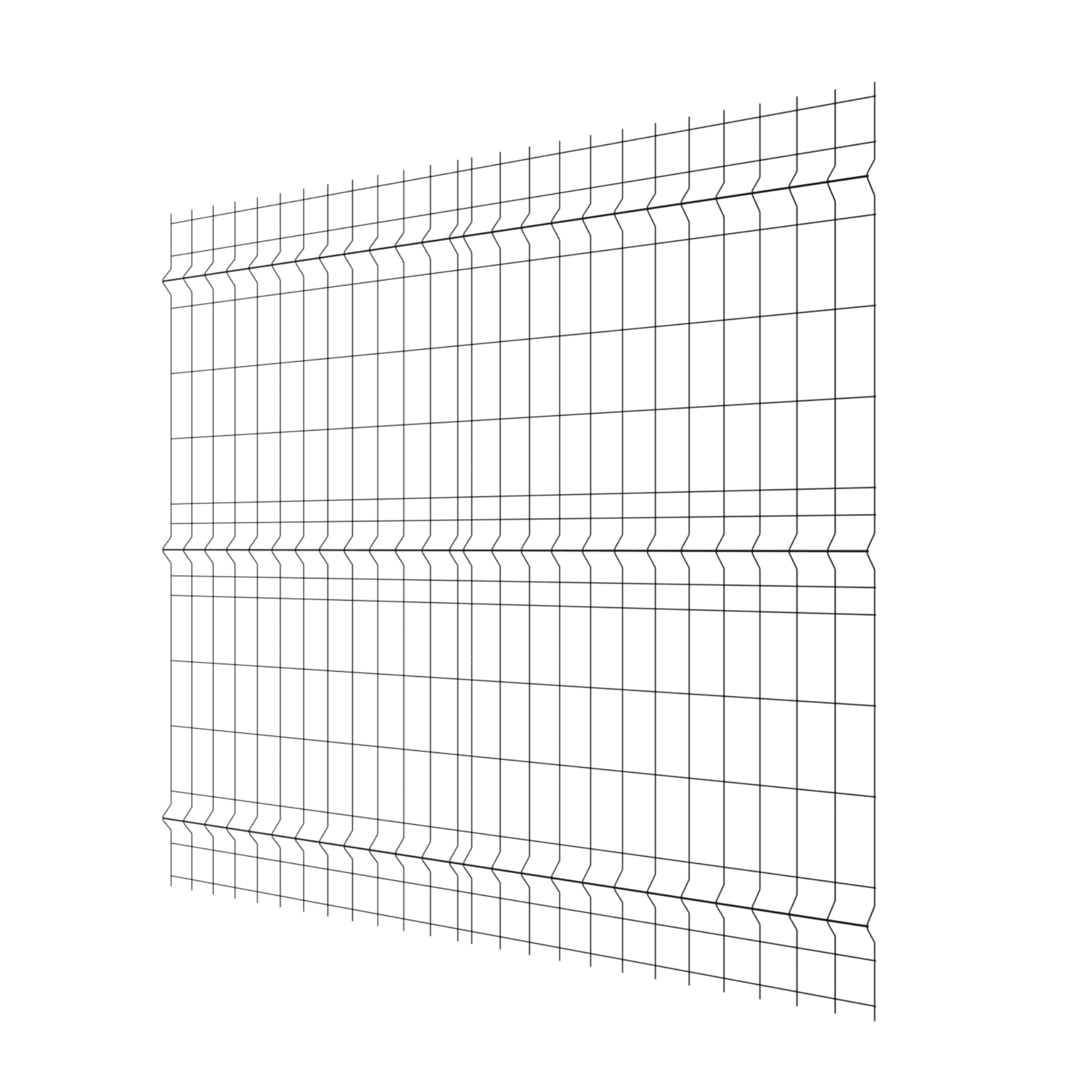

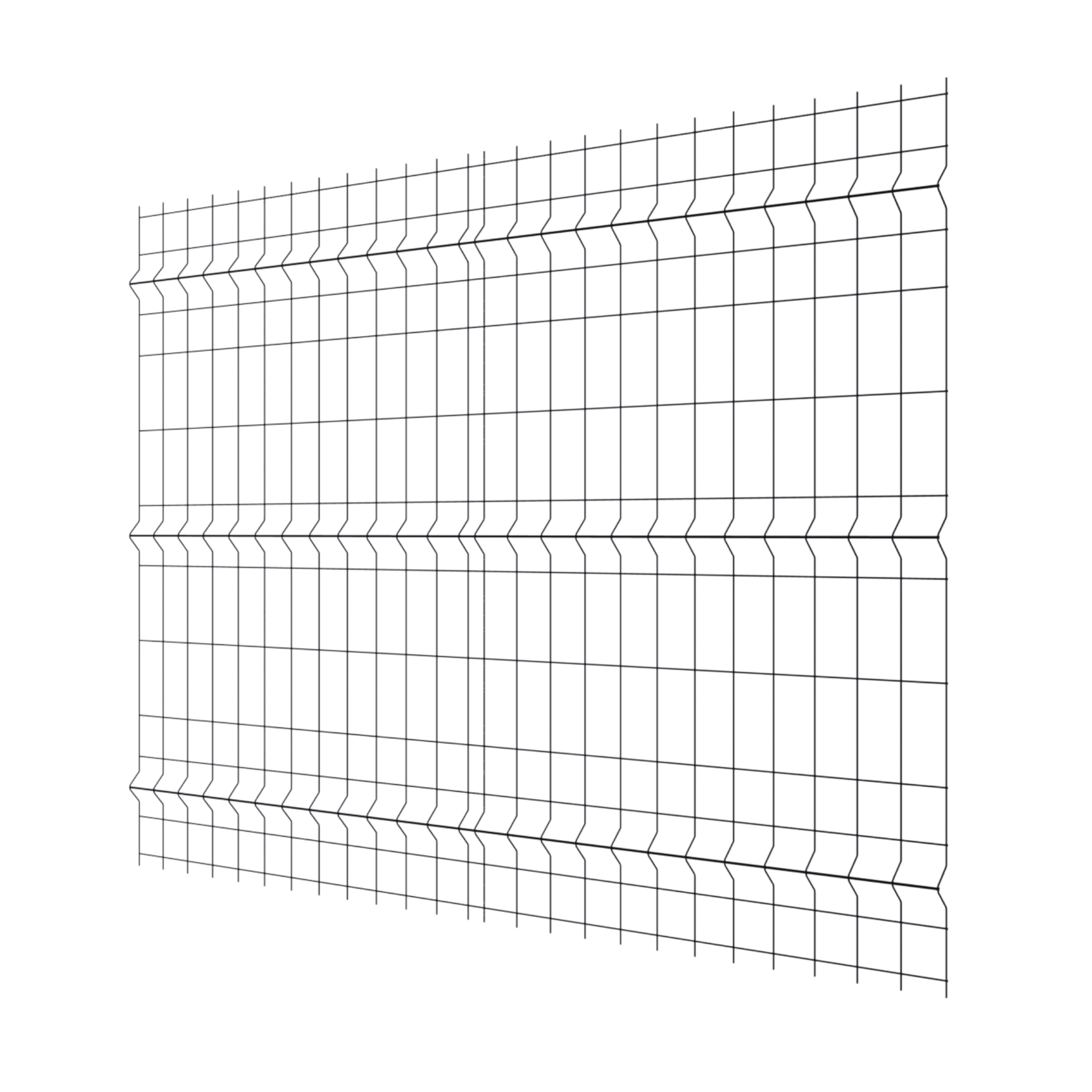

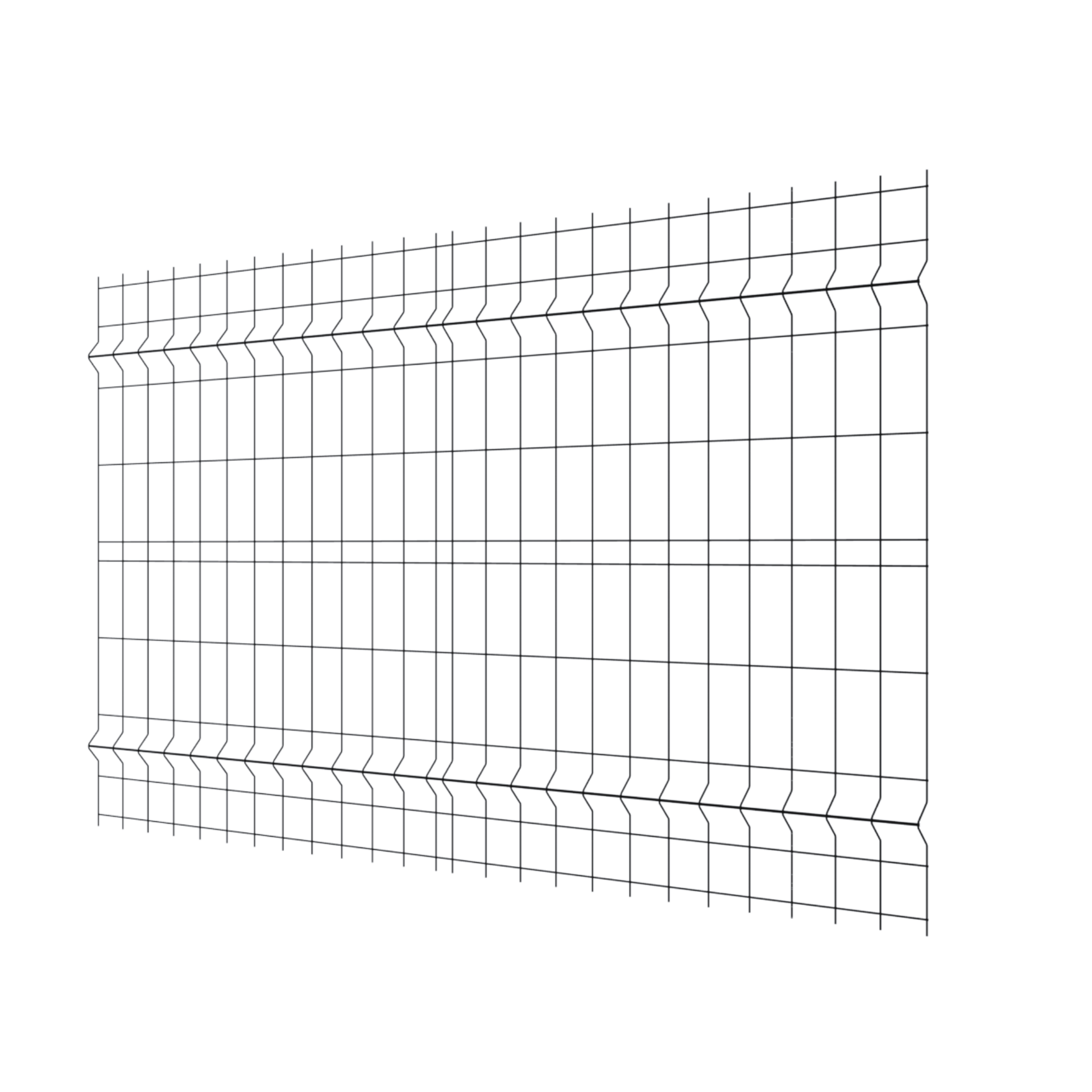

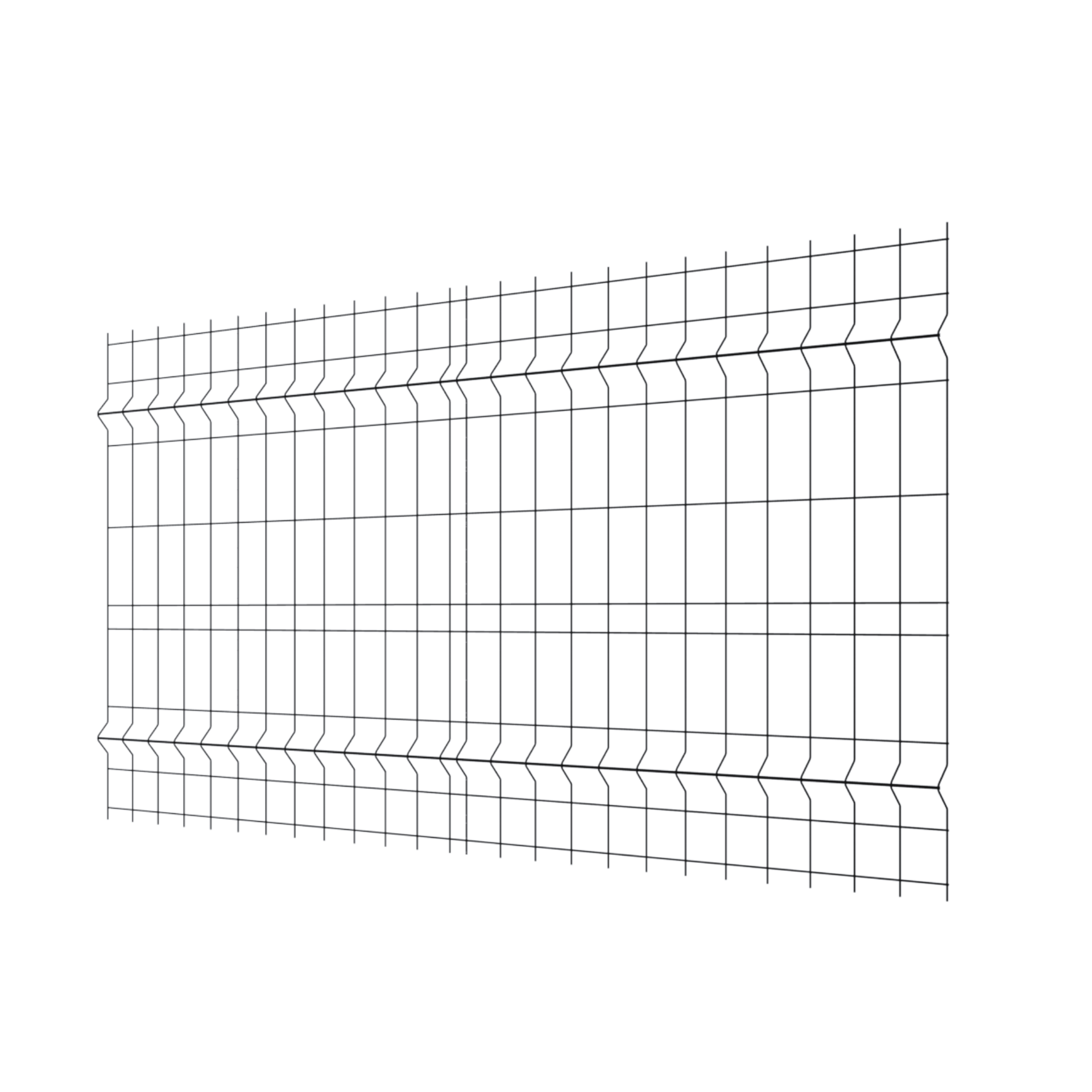

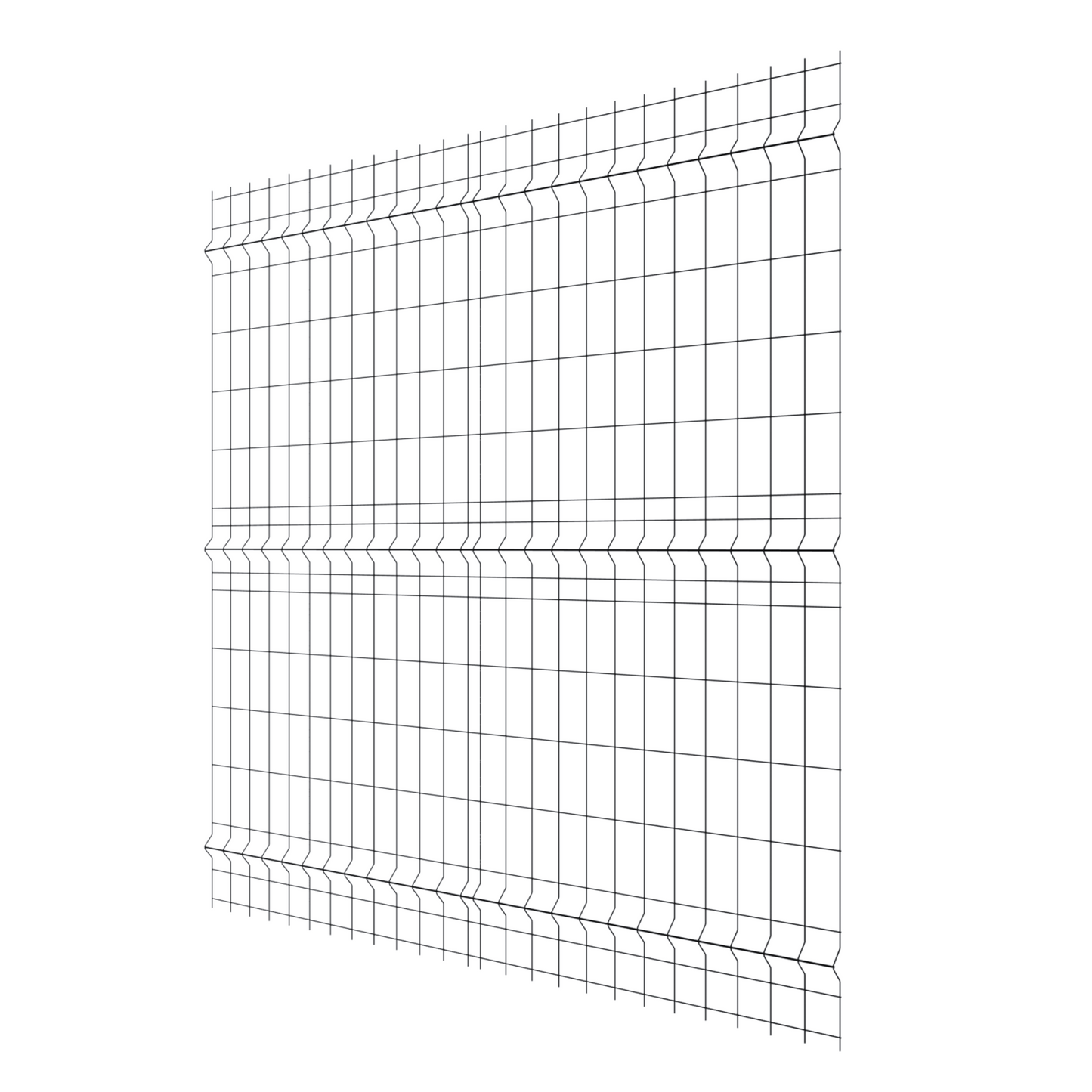

EcoHybrid Security Fencing - L 2560mm - PANELS ONLY

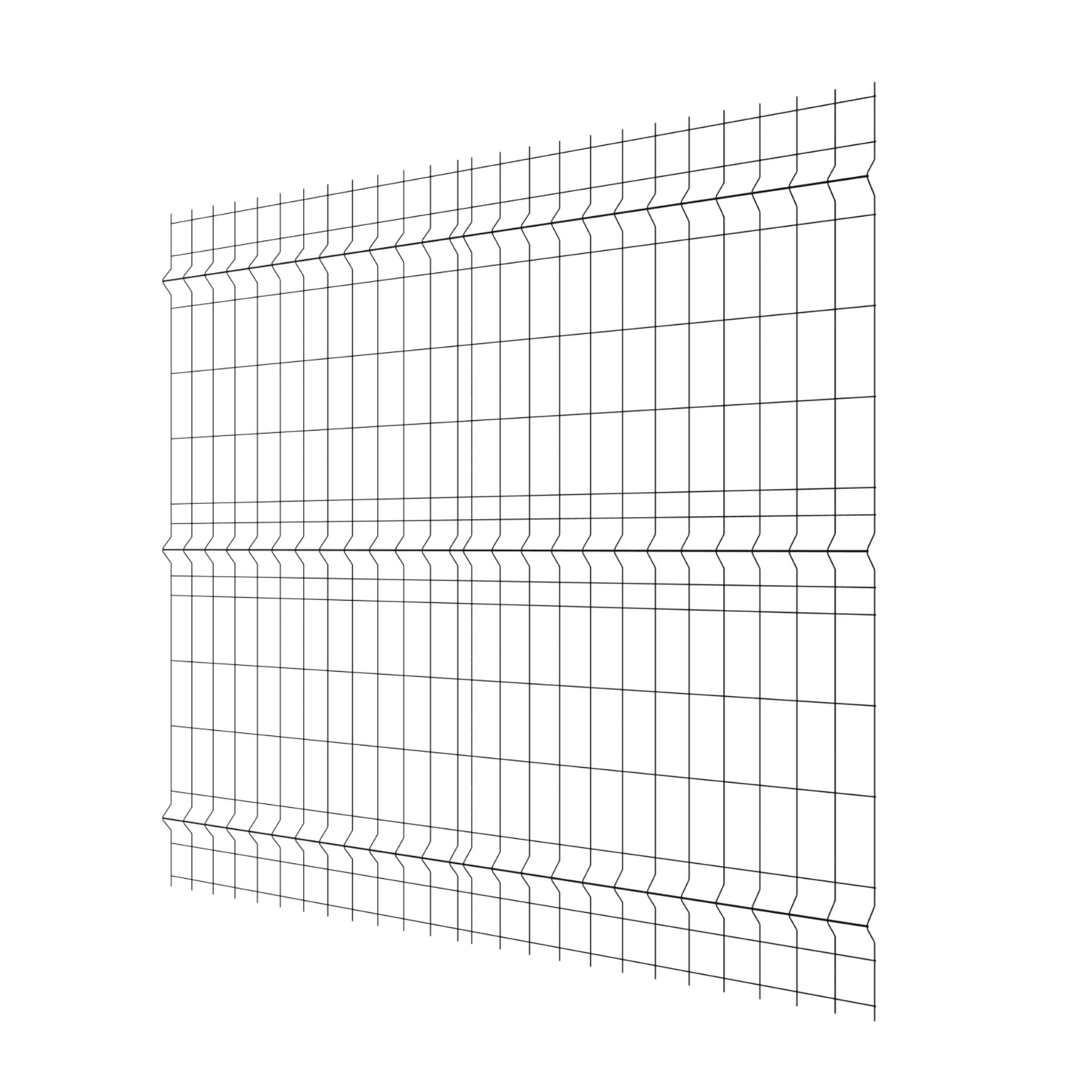

- Welded mesh panel made of horizontal and vertical steel wires with diameters: Ø4 mm, and Ø5 mm in reinforcing bends
- Mesh sizes: 50 × 200 mm, 100 × 200 mm, 100 × 100 mm; in reinforced bends: 60 × 50 mm, 60 × 100 mm
- Panel width: 2500 mm (26 vertical wires)
- Panel heights: 1200 mm, 1400 mm, 1700 mm, 2000 mm, 2400 mm
- Secured with 30 mm anti-climb spikes at both the top and bottom
- Powder coated using Plascoat® PPA571 FLUIDIZED BED technology
- Available RAL colours: 7016, 9005, 6005
- Fluidized bed coating technology ensures 25 years of anti-corrosion protection

Technical Specifications – Fence Posts:
- Cold-formed galvanised steel profile: 40 × 60 × 1.2 mm
- Post heights: 1700 mm, 2000 mm, 2200 mm, 2400 mm, 2600 mm, 3000 mm, 3400 mm
- Powder coated with polyester paint

Technical Specifications – Fixing Components (post + panel):
- Intermediate fixings
- 90° corner fixings
- Start and end fixings
- Galvanised M8 bolts and nuts
- Plastic panel-to-screw clips
- Available RAL colours: 7016, 9005, 6005
